Radial Stacker Design Complete

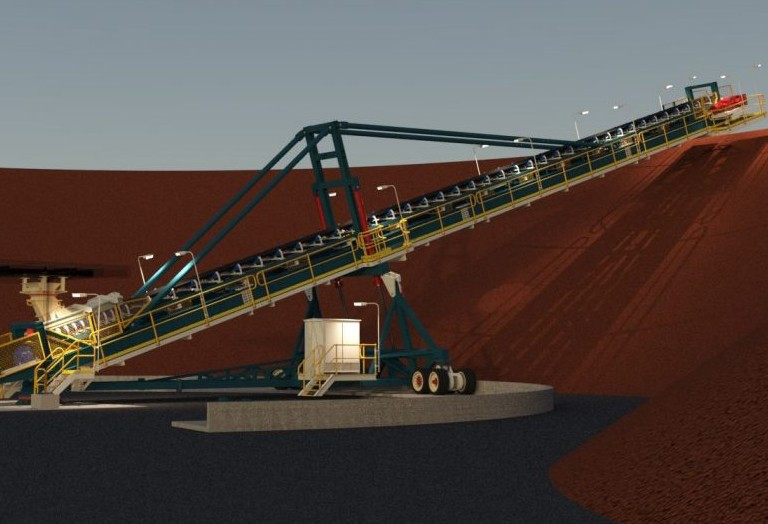

Invent Design has completed the detailed design of a new 50m Radial Stacker for George Fisher Mine. This stacker was designed to upgrade and replace their existing stacker. It handles Zinc and Lead Sulphide ore at 4.5mT per year with a design life of 20+ years.


This new stacker raises and lowers between 6 and 18 degrees with hydraulic cylinders and slewing is powered by 4 x hydraulic wheel motors.


We supplied full mechanical, structural and electrical design from concept through to completed fabricated drawings. If you would like to know more about this project please contact us here.
